SEE MORE →Excavation in Southend-on-Sea is far more than moving soil: it is a controlled engineering discipline that underpins virtually every below-ground construction activity in the borough. From basement constructions in the conservation areas of Leigh-on-Sea to major infrastructure upgrades along the A127 corridor, the category encompasses site investigation interpretation, temporary works design, support system selection, groundwater control, and rigorous movement monitoring. In a coastal urban environment where space is tight and neighbouring structures are sensitive, getting excavation methodology right determines project viability, programme certainty, and the safety of workers and the public alike.
Southend-on-Sea sits on the northern bank of the Thames Estuary, and its geology presents a layered sequence typical of the London Basin margins. Near-surface deposits are dominated by the London Clay Formation, a stiff, overconsolidated clay that can stand unsupported in short-term cuts but is prone to long-term softening and progressive failure when exposed to water or weathering. Beneath this, the Lambeth Group sands and gravels act as a confined aquifer, often requiring dewatering or cut-off walls to manage base instability. Superficial deposits including alluvium and river terrace gravels are widespread, particularly in the central and eastern wards, introducing high groundwater tables and variable bearing strata that directly influence excavation geometry and support loads. These conditions demand a geotechnical approach that is both locally calibrated and risk-aware.
All excavation works in Southend-on-Sea must comply with the UK's CDM 2015 Regulations, which place explicit duties on clients, designers, and contractors to manage health and safety throughout the project lifecycle. The design and execution of temporary works, including any excavation deeper than 1.2 metres, falls under BS 5975:2019, which mandates procedural control through a Temporary Works Coordinator and staged design checks. Where excavations approach boundaries or existing buildings, the Party Wall etc. Act 1996 is triggered, requiring notices and condition surveys. Additionally, Eurocode 7 (BS EN 1997) governs geotechnical design, requiring limit state assessments for overall stability, heave, and hydraulic failure. The local authority's building control team and the Environment Agency may also impose conditions related to groundwater discharge and flood risk, given the borough's estuarine setting.

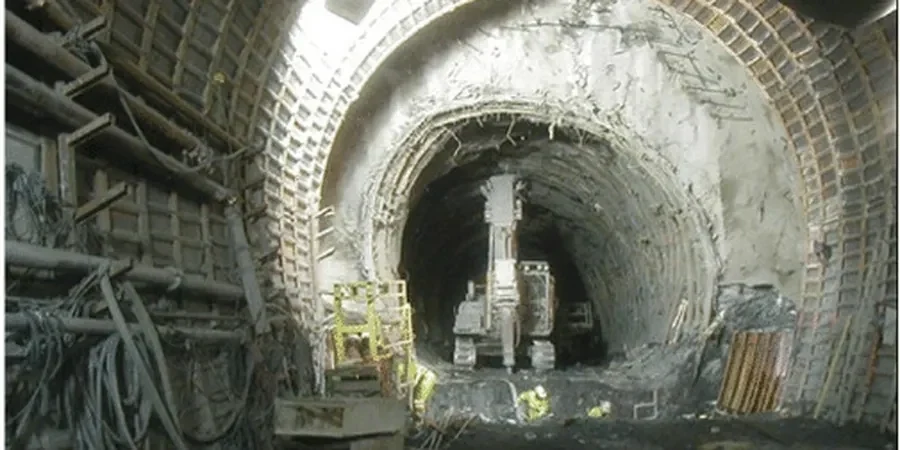

Projects requiring formal excavation engineering in Southend-on-Sea are diverse. Deep basements beneath mixed-use developments in the town centre rely on embedded retaining walls designed through geotechnical design of deep excavations, often incorporating propping or ground anchors to limit lateral deflections. Sewer and utility tunnels through the London Clay interface with water-bearing Lambeth Group layers demand specialist input from geotechnical analysis for soft soil tunnels to select appropriate tunnelling methods and face support pressures. Even shallower open-cut works for foundations, swimming pools, or attenuation tanks benefit from targeted geotechnical excavation monitoring to validate design assumptions and protect adjacent assets. In each case, the integration of site investigation data with robust temporary works design is the common thread.
The principal risks stem from the layered geology. London Clay can soften and lose strength upon exposure, while underlying Lambeth Group sands carry confined groundwater that can cause base heave or piping if not properly managed. Shallow alluvium and terrace gravels introduce high water tables, requiring robust dewatering or exclusion systems. Proximity to the estuary also means tidal lag effects can influence groundwater levels, complicating stability assessments.
Excavation works are governed primarily by the CDM 2015 Regulations for overall health and safety coordination. Temporary works design and management must follow BS 5975:2019, while geotechnical design adheres to Eurocode 7 (BS EN 1997). The Party Wall etc. Act 1996 applies when excavating near neighbouring structures. Additionally, the Environment Agency may regulate groundwater discharge, and local building control enforces structural and foundation requirements.
Under BS 5975:2019, any excavation deeper than 1.2 metres requires a formal temporary works design and the appointment of a Temporary Works Coordinator. However, even shallower excavations may need engineered support if they are adjacent to highways, existing buildings, or in poor ground conditions where instability could endanger personnel or property. The depth threshold triggers procedural controls, but the actual need for engineered support is determined by risk assessment.
The choice depends on ground conditions, depth, and site constraints. Contiguous bored pile walls are common in London Clay because the clay can arch between piles, reducing concrete quantities. Secant pile walls are used where groundwater cut-off is required, particularly through water-bearing Lambeth Group layers. Sheet pile walls suit shallower depths in granular soils, while diaphragm walls are reserved for very deep basements or where stiffness demands are high.
