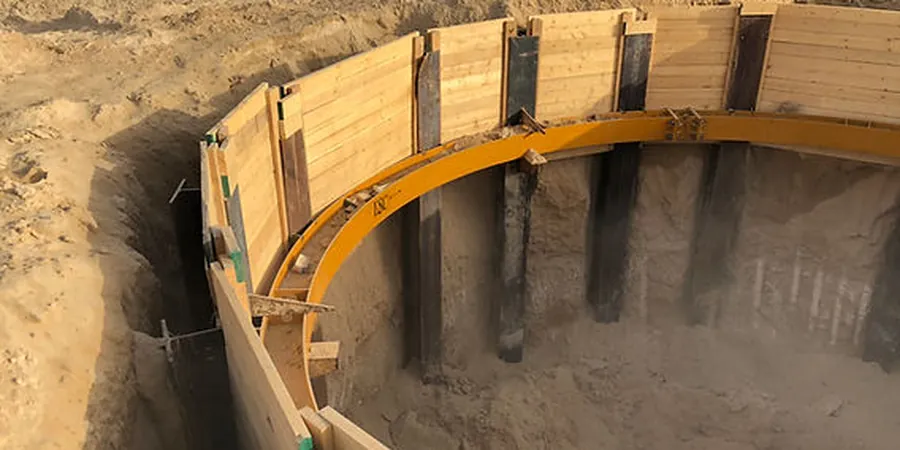

Foundations in Southend-on-Sea

Foundation design in Southend-on-Sea must address the complex ground conditions typical of the Thames Estuary, where soft alluvial clays and pockets of running sand overlie the London Clay Formation. Our approach integrates site-specific ground investigation with UK standards including Eurocode 7 and NHBC Chapter 4.2, ensuring bearing capacity and settlement limits are met. For deeper strata or high loads, we specify pile foundation design with careful assessment of negative skin friction in the compressible soils.

Residential extensions on the marine deposits often require reinforced strip or trench fill solutions, while coastal and multi-storey developments benefit from CFA or driven piling to transfer loads below the soft layers. In brownfield schemes, we combine foundation engineering with contamination assessment to manage ground gas and chemical risks. Every design is verified against the Southend-on-Sea Borough Council building control requirements for structural safety and durability.

Technical parameters

Parameter	Typical value
Design standard	BS 8081:2015 + BS EN 1997-1 (UK NA)
Anchor type	Active (prestressed) / Passive (non-stressed)
Bond stress, London Clay (temporary)	120–180 kPa (low-pressure grout)
Bond stress, Thanet Sand (permanent)	300–450 kPa (post-grouted)
Proof load	1.25 × service load (temporary), 1.50 × service load (permanent)
Lock-off load	80–100% of design load, creep < 2 mm over log time
Corrosion protection	Double barrier (BS EN 1537 Class I) for permanent anchors

Additional services

Temporary Active Anchors for Deep Excavations

Multi-strand anchors designed for 12-month service life in London Clay, with rapid installation using self-drilling hollow bars where collapsing ground is a risk. Proof testing to 1.25× service load with creep monitoring over 60 minutes minimum.

Permanent Passive Anchors for Retaining Walls

Double-corrosion-protected anchors for 120-year design life in accordance with BS EN 1537 Class I. Suitable for secant pile walls and diaphragm walls along Southend’s coastal frontage, with sacrificial testing on site-specific trial anchors.

Anchor Testing and Integrity Assessment

On-site proof testing, extended creep tests and lift-off checks for existing anchor inventories. We use hydraulic jacks with calibrated load cells and digital displacement transducers to verify residual load against the original lock-off value.

Reference standards

BS 8081:2015 — Code of practice for grouted anchors, BS EN 1997-1:2004 + UK National Annex — Eurocode 7: Geotechnical design, BS EN 1537:2013 — Execution of special geotechnical works: Ground anchors, BS 5930:2015 — Code of practice for ground investigations

Common questions

What is the difference between an active and a passive anchor?

An active anchor is prestressed after installation: we apply a controlled jacking force and lock it off against the structure, which actively compresses the ground and limits movement from day one. A passive anchor is not stressed; it only develops resistance once the ground starts to move and transfers load into the tendon. In Southend-on-Sea, we specify active anchors for most deep excavations because the London Clay creeps under sustained load, and passive systems would allow too much deflection before engaging.

How much does anchor design and testing cost in Southend-on-Sea?

For a typical project involving design, sacrificial trial anchors and on-site proof testing, the cost ranges from £740 to £2,850 depending on the number of anchors, the required corrosion protection class and the access conditions. A single temporary anchor with basic testing sits at the lower end; permanent anchors with double barrier protection and extended creep tests reach the upper end.

What ground conditions in Southend-on-Sea affect anchor performance the most?

The London Clay dominates most sites, and its behaviour depends heavily on moisture content and silt partings. When the clay is intact and firm, bond stresses are predictable. However, where it transitions into the Lambeth Group sands, water ingress can wash out the grout during installation if the borehole is not cased. The tidal Thames also influences groundwater in the Thanet Sand, causing daily fluctuations in pore pressure that affect long-term anchor capacity.

Do you carry out anchor testing on existing structures?

Yes. We perform lift-off tests on existing anchors to measure the residual load and compare it against the original lock-off value. This is common in Southend-on-Sea for retaining walls built in the 1990s and 2000s along the seafront, where corrosion or ground movement may have reduced the anchor force over time. We use a calibrated hydraulic jack and digital displacement gauge, and report results against BS 8081 acceptance criteria.
