Laboratory in Southend-on-Sea

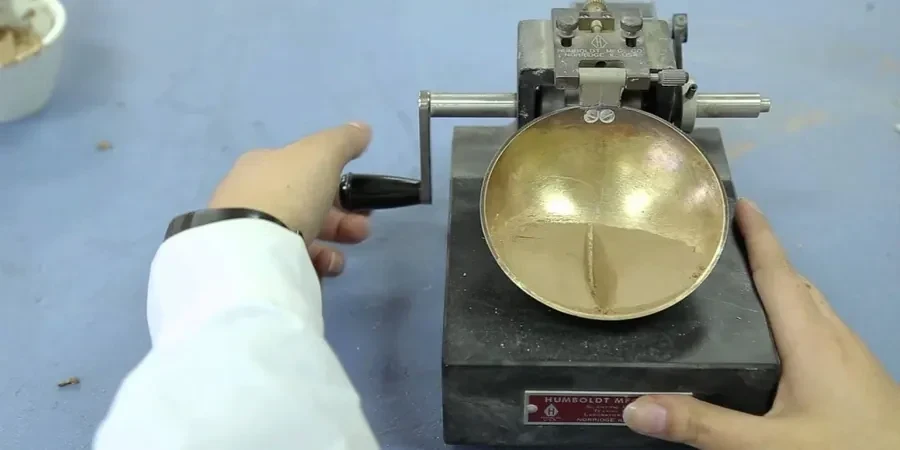

In Southend-on-Sea, laboratory testing provides the essential physical classification of soils to support safe geotechnical design. The local geology, dominated by the London Clay Formation and overlying Thames gravels and alluvium, demands precise characterisation to assess behaviour. Our grain size analysis (sieve + hydrometer) quantifies the full particle size distribution, from coarse sands to fine clays, directly informing drainage and compaction potential. Complementing this, Atterberg limits define the plasticity range, a critical parameter for predicting volume change in the region’s high-plasticity clays. All procedures strictly follow BS 1377, ensuring compliance with UK practice.

These classifications are fundamental for foundation design, road construction, and earthworks across Southend. Whether assessing shrink-swell risk for residential plots or verifying engineered fill, accurate lab data is non-negotiable. We routinely combine index testing with strength and chemical analysis to build a complete ground model for your project.

Technical parameters

Parameter	Typical value
Design standard	BS 8081:2015 + BS EN 1997-1 (UK NA)
Anchor type	Active (prestressed) / Passive (non-stressed)
Bond stress, London Clay (temporary)	120–180 kPa (low-pressure grout)
Bond stress, Thanet Sand (permanent)	300–450 kPa (post-grouted)
Proof load	1.25 × service load (temporary), 1.50 × service load (permanent)
Lock-off load	80–100% of design load, creep < 2 mm over log time
Corrosion protection	Double barrier (BS EN 1537 Class I) for permanent anchors

Additional services

Temporary Active Anchors for Deep Excavations

Multi-strand anchors designed for 12-month service life in London Clay, with rapid installation using self-drilling hollow bars where collapsing ground is a risk. Proof testing to 1.25× service load with creep monitoring over 60 minutes minimum.

Permanent Passive Anchors for Retaining Walls

Double-corrosion-protected anchors for 120-year design life in accordance with BS EN 1537 Class I. Suitable for secant pile walls and diaphragm walls along Southend’s coastal frontage, with sacrificial testing on site-specific trial anchors.

Anchor Testing and Integrity Assessment

On-site proof testing, extended creep tests and lift-off checks for existing anchor inventories. We use hydraulic jacks with calibrated load cells and digital displacement transducers to verify residual load against the original lock-off value.

Reference standards

BS 8081:2015 — Code of practice for grouted anchors, BS EN 1997-1:2004 + UK National Annex — Eurocode 7: Geotechnical design, BS EN 1537:2013 — Execution of special geotechnical works: Ground anchors, BS 5930:2015 — Code of practice for ground investigations

Common questions

What is the difference between an active and a passive anchor?

An active anchor is prestressed after installation: we apply a controlled jacking force and lock it off against the structure, which actively compresses the ground and limits movement from day one. A passive anchor is not stressed; it only develops resistance once the ground starts to move and transfers load into the tendon. In Southend-on-Sea, we specify active anchors for most deep excavations because the London Clay creeps under sustained load, and passive systems would allow too much deflection before engaging.

How much does anchor design and testing cost in Southend-on-Sea?

For a typical project involving design, sacrificial trial anchors and on-site proof testing, the cost ranges from £740 to £2,850 depending on the number of anchors, the required corrosion protection class and the access conditions. A single temporary anchor with basic testing sits at the lower end; permanent anchors with double barrier protection and extended creep tests reach the upper end.

What ground conditions in Southend-on-Sea affect anchor performance the most?

The London Clay dominates most sites, and its behaviour depends heavily on moisture content and silt partings. When the clay is intact and firm, bond stresses are predictable. However, where it transitions into the Lambeth Group sands, water ingress can wash out the grout during installation if the borehole is not cased. The tidal Thames also influences groundwater in the Thanet Sand, causing daily fluctuations in pore pressure that affect long-term anchor capacity.

Do you carry out anchor testing on existing structures?

Yes. We perform lift-off tests on existing anchors to measure the residual load and compare it against the original lock-off value. This is common in Southend-on-Sea for retaining walls built in the 1990s and 2000s along the seafront, where corrosion or ground movement may have reduced the anchor force over time. We use a calibrated hydraulic jack and digital displacement gauge, and report results against BS 8081 acceptance criteria.

Laboratory in Southend-on-Sea

Available services

Grain size analysis (sieve + hydrometer)

Atterberg limits

Need a geotechnical assessment?
