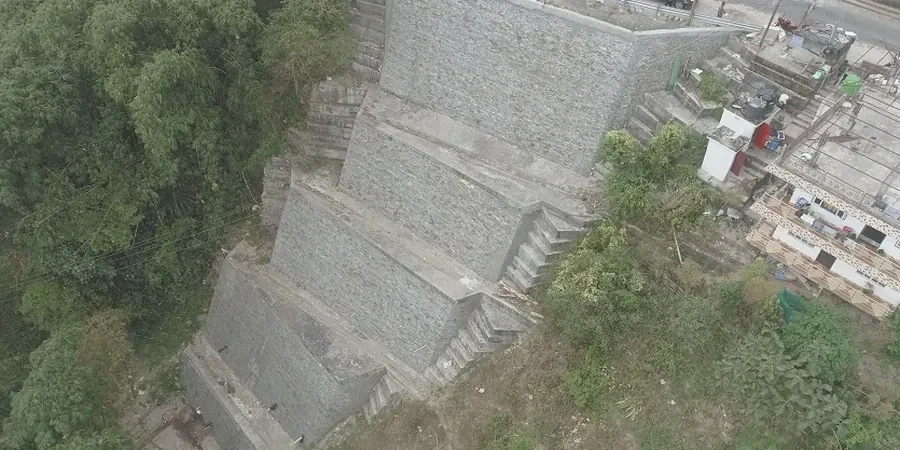

Slopes & Walls in Southend-on-Sea

An active anchor is prestressed after installation: we apply a controlled jacking force and lock it off against the structure, which actively compresses the ground and limits movement from day one. A passive anchor is not stressed; it only develops resistance once the ground starts to move and transfers load into the tendon. In Southend-on-Sea, we specify active anchors for most deep excavations because the London Clay creeps under sustained load, and passive systems would allow too much deflection before engaging.

For a typical project involving design, sacrificial trial anchors and on-site proof testing, the cost ranges from £740 to £2,850 depending on the number of anchors, the required corrosion protection class and the access conditions. A single temporary anchor with basic testing sits at the lower end; permanent anchors with double barrier protection and extended creep tests reach the upper end.

The London Clay dominates most sites, and its behaviour depends heavily on moisture content and silt partings. When the clay is intact and firm, bond stresses are predictable. However, where it transitions into the Lambeth Group sands, water ingress can wash out the grout during installation if the borehole is not cased. The tidal Thames also influences groundwater in the Thanet Sand, causing daily fluctuations in pore pressure that affect long-term anchor capacity.

Yes. We perform lift-off tests on existing anchors to measure the residual load and compare it against the original lock-off value. This is common in Southend-on-Sea for retaining walls built in the 1990s and 2000s along the seafront, where corrosion or ground movement may have reduced the anchor force over time. We use a calibrated hydraulic jack and digital displacement gauge, and report results against BS 8081 acceptance criteria.
